3MP Home PT Camera WSH310

Part No. WSH310

Equipped with high-quality Taiwan SoC; Supports Wi-Fi connectivity for flexible installation; Built-in motion detection for instant alerts; Integrated eMMC storage for reliable video backup

Main advantages

Equipped with high-quality Taiwan SoC
Supports Wi-Fi connectivity for flexible installation
Built-in motion detection for instant alerts
Integrated eMMC storage for reliable video backup

Specifications

Optical
- Effective Pixels: 3 MP (2304H × 1296V) - Super Pixel
- WDR Technology: WDR Pro
- Focal Length: 3.37 mm
- F Number: F2.2
- Field of View: Diagonal: 105.5°, Horizontal: 87.2°, Vertical: 47.3°
- IRIS: Fixed-Iris
- Ambient Light Sensor: Yes
- IR Cut Filter: IR Cut Filter with Auto Switch
LED
- Type: Built-in IR Illuminators
- IR Illuminators: Effective Up to 10 m with Full FOV Coverage
- Wavelength: 940 nm
- Number of LEDs: 1
- White Light Illuminators: Working Distance, Number of LEDs: N/A
Video
- Compression: H.264, H.265, MJPEG
- Encode Performance: 1080p@30fps + 2nd stream
- Audio
- Compression: G.711/AAC
- Microphone: Yes
- Speaker: Speaker × 1
Power
- Power Source: DC5V
- Power Consumption: TBC
- Input/Output
- Connectivity: RJ-45, 10/100 Mbps; WiFi 2.4 GHz 1×1
- Connectors: Power: Micro USB; Ethernet: RJ-45 Connector; Alarm: N/A; Audio I/O: N/A
- On-Board Storage: eMMC 16GB
General
- Rotation: Pan ≥ 340°, Tilt: -5°–50°
- Operation Temperature: Start/Working = -10°C ~ 50°C
- Condensation: 90% R.H.
- Vandal Resistance: N/A
- Ingress Protection: N/A

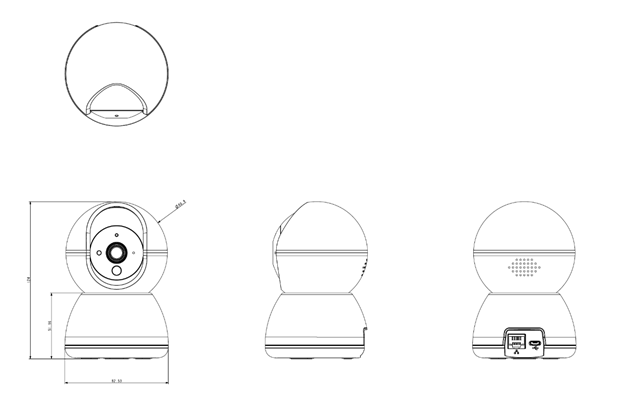

- Dimensions: D 82.53 × H 124 mm
- Weight: TBC
- Housing Material: Plastic
- Package Contents: QIG, Installation Sticker, Power Adaptor, USB Cable (Type A to Micro USB)
- Compliance: CE, FCC (Class A)
