Solar Device Test Equipment Four-Station TMTT Photovoltaic Test System
Part No. SSG6050
Dedicated to reverse surge testing of Schottky diodes
Used to evaluate the reliability of guard ring structures
Supports multiple package types with 11 built-in package selections
Automatic polarity detection
Compatible with TMTT handler
Main advantages
- Low Voltage Protection: Reduces power to avoid overcurrent; stops heating if voltage drops below 50% of the rated level.
- High Voltage Protection: Alerts and stops heating when voltage exceeds safety limits.
- Cooktop Overheat Protection: Monitors surface temperature and halts heating when overheating is detected.
- Internal Overheat Protection: Stops heating when internal temperature is too high; resumes automatically once safe.
- Auto Power-Off: Automatically shuts down after a long period of inactivity.
- Safety Cooling Function: Fan continues to operate after shutdown until the unit cools to a safe temperature.
- EMC Electromagnetic Safety Protection: Complies with EMC standards to reduce electromagnetic interference and ensure safe, reliable operation.
Specifications

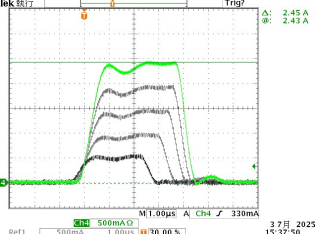

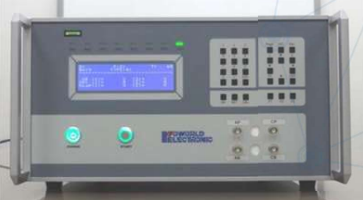

SCHOTTKY DIODE REVERSE SURGE TESTER
- Current Output: 0.5A - 50V
- Voltage Measurement: 5V - 350V
- PULSE WIDTH: 1 μS ~ 100 μS
- PERIOD: 100 μS ~ 9999 μS
- PULSE NO: 1~ 20
