Low Voltage Ceiling Fan ( LV 12V/ 24V )
Part No. iU6393+iM4712

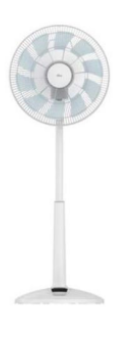

Household Fan Household Fan
Air Purifier Air Purifier
Dehumidifier Fan
Sweep Robot Sweep Robot
RO Water Purifier RO Water Purifier
Main advantages
- FOC control for high rotation speed (6 poles / 80,000 RPM or 12 poles / 40,000 RPM)
- Built-in protection for enhanced reliability
- Adaptive algorithm FOC technology for silent operation
- Ease-of-use parameter modification platform
- 4-wire programming for flexible development
- OTA updates for seamless feature enhancements
Specifications

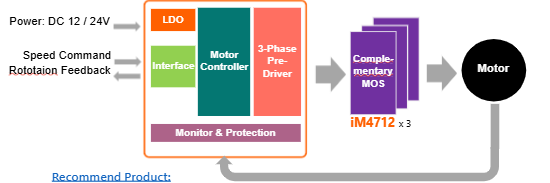

3-Phase FOC Controller with P/N Pre-Driver
Operation Voltage 7V-32V
Embedded with : 5V LDO, Current Amplifierx2, 40V P/N Pre-driver
Low power stop mode
Control Functions: support PWM duty/ DC/ Clock unput; Adjustable PWM Frequency; Lead angle; FG Output; Adjistable Start
Built-in Protection: Over-Voltage; Over-Temperature; Over-Current; Auto Recovery
