Soy Milk Maker
Part No. SN8F5711
Use airflow to dry hair in one step and straighten it at the same time, simplifying the styling process and saving time. Suitable for all hair types.
Main advantages
- 1. Strong rotating speed, Filter-free
- 2. Intelligent Touch, free choice
- 3. Quick soy milk, no waiting
- 4. Beat dry beans without soaking, Silky smooth
- 5. Make soybean milk without noise, Less disturb
- 6. One button cleaning, Convenient and efficient
- 7. Advance reservation, Power on freely

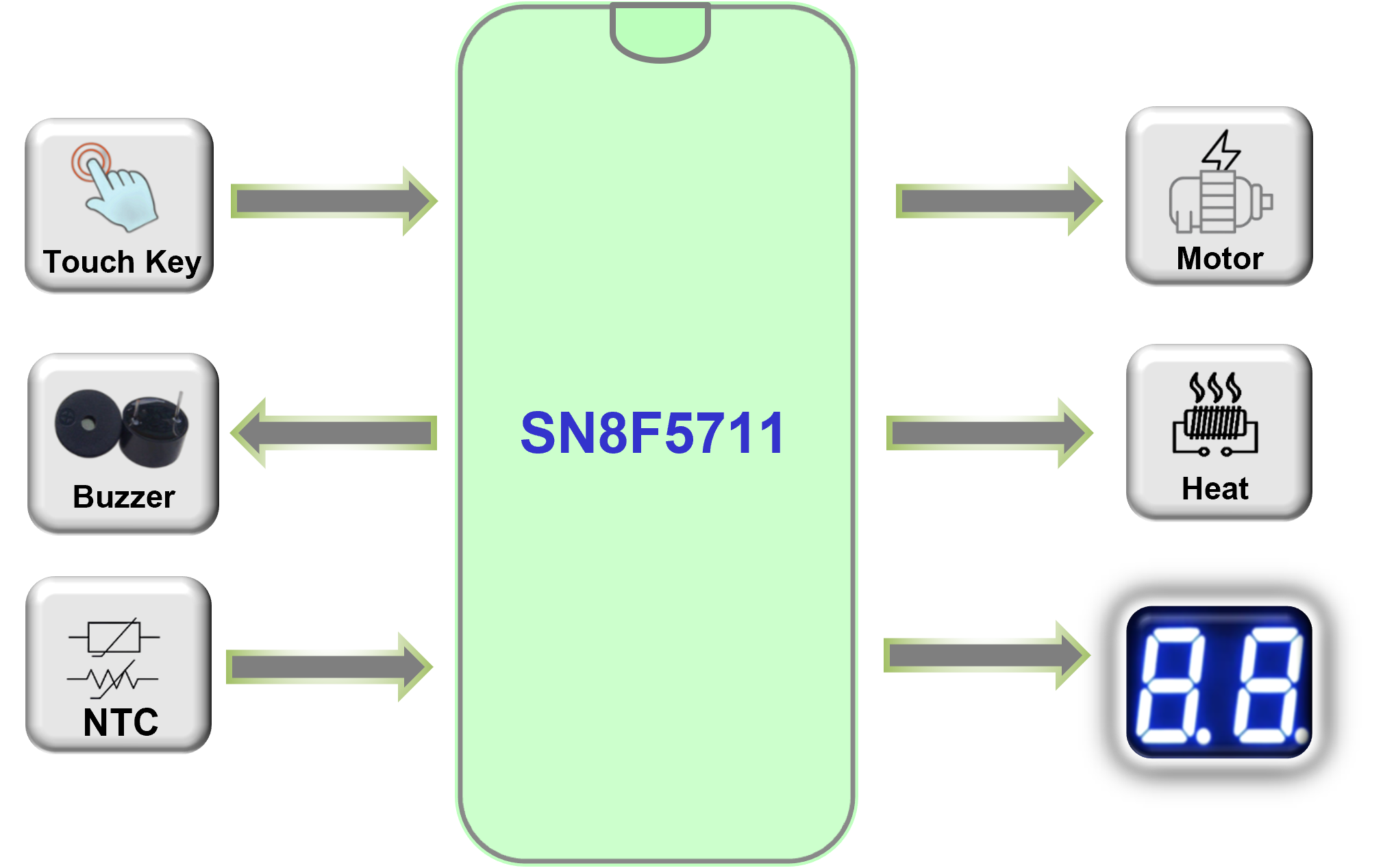

Specifications
Enhanced 8051 microcontroller, ROM 8K bytes, RAM 768 bytes
12-bit SAR ADC
- -13 external channels
- - Monitors the NTC circuit, open-circuit, and short-circuit for safety
16-bit PWM
Supports SPI, UART, and I2C interface
Supports hardware Multiplication/Division Unit (MDU)
15-channel capacitive touch
High noise and electrostatic discharge (ESD) immunity:
- Enables stable operation despite high-noise loads, including high-speed motor controlled by silicon-controlled rectifiers (SCRs), and heating wires controlled by relays
