High-speed Blender
Part No. SN8F5703A
The main advantages of the blender include: it can release the nutrients of ingredients more effectively, make drinks or soups with a delicate taste and no residue, can make hot and cold drinks and sauces with a variety of functions, is easy to use and easy to clean, and can thoroughly crush hard ingredients (such as fish bones and nuts).
Main advantages
- Breaking cell walls
- Ultra-fine grinding
- Multi-purpose in one machine
- Multiple applications
- Easy to operate

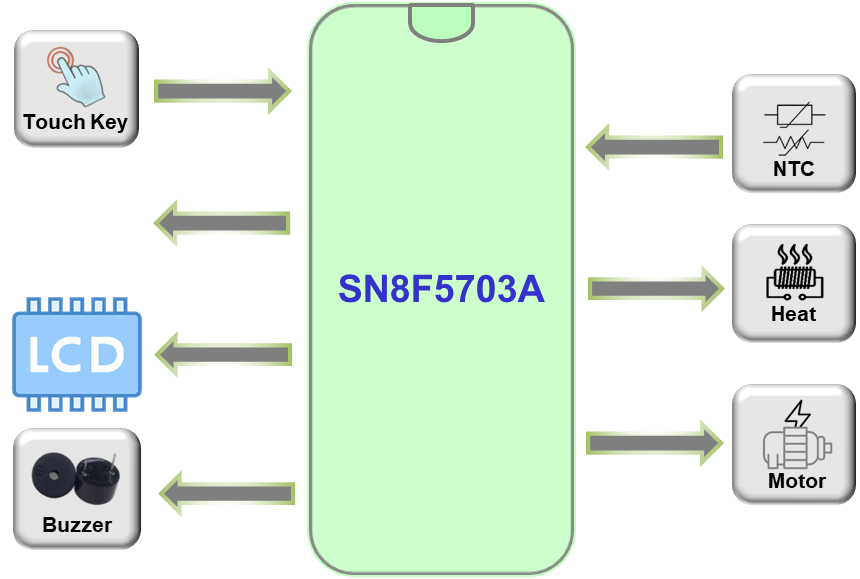

Specifications
Enhanced 8051 micro-controller, ROM 8K bytes, RAM 512 bytes
12-bit SAR ADC
- 11 external channels
- Monitors the NTC circuit, open-circuit, and short-circuit for safety
16-bit PWM
- Controls buzzer output
Supports SPI, UART, and I2C interface
High noise and electrostatic discharge (ESD) immunity
- Enables stable operation despite high-noise loads, including solenoid valve and water pumps, controlling water flow and pressure, and heating wires, controlled by silicon controlled rectifiers (SCRs)
