Laboratory Equipment (PQRR6885)
Part No. PQRR6885

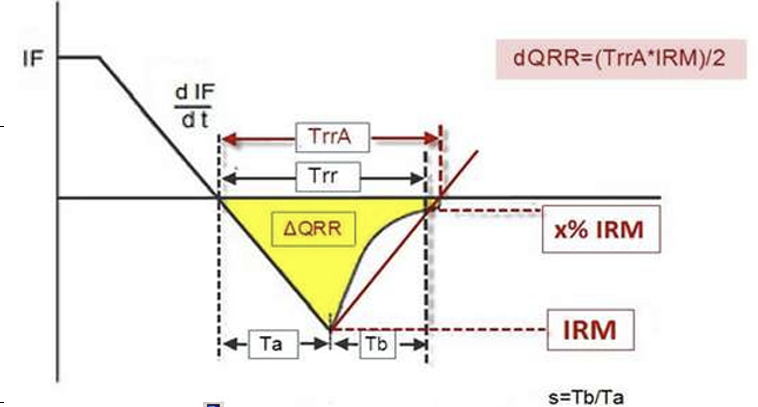

QRR test measures reverse recovery charge and current spikes during device turn-off
Configurable Current Slow Rate (Di/Dt)
IRM, Tr, TrrA, and ΔQRR can be measured without an external oscilloscope
Oscilloscope Integration
Automated Report Generation
Oven Integration
Specifications
IF (Forward Current): 1A ~ 50A ±10%
IRM (Reverse Current): 30A MAX
VR(Reverse Voltage): 30V/50V/100V/200V/400V
diFA/dt: 50 A/uS ~ 500 A/uS, Step 5A
TRR/TRRA: 10nS-2uS
