MOSFET Test Solutions 4-Station TMTT Dual-Die Test System (P6635R)
Part No. P6635R
Built-in contact check function
Supports automated handler interface

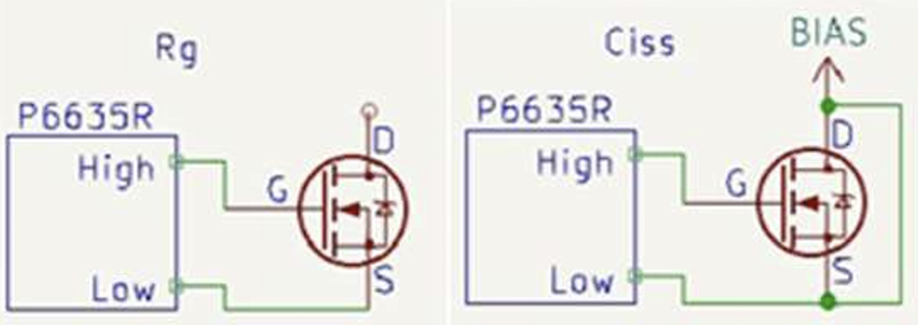

Rg, Ciss, and Crss measured at the same station
Software supports parameter download and data acquisition
Specifications
MOSFET: Rg, Criss, Crss, Diode: Cj TESTER
Measure Frequency: 100K Hz - 1M Hz
Bias Voltage Output: 0V - 25V
Capacitance Range: 1 pF - 10 nF
Rg Measurement Range: 1 Ω - 1K Ω
